Part # RSRCANWCT-54-5002

More from this brand

SUPER B BATTERY 2020

SUPER B BATTERY 2020

In Stock
€1.253,94 incl. tax
€1.253,94
€1.019,46 excl. tax
Sold out
Prices include 23% VAT as per the fiscal requirements of Portugal. Applicable VAT is automatically calculated according to selected country.

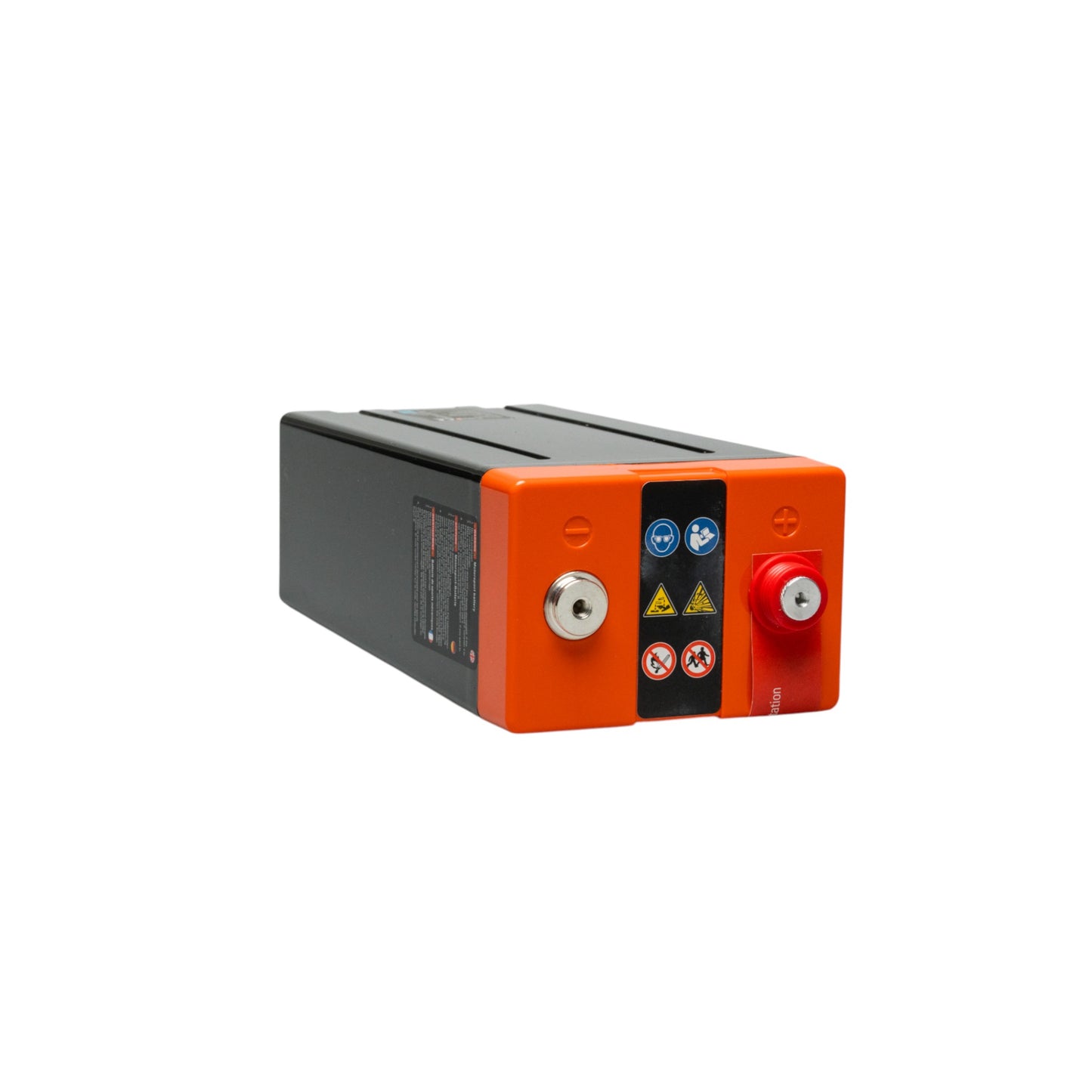

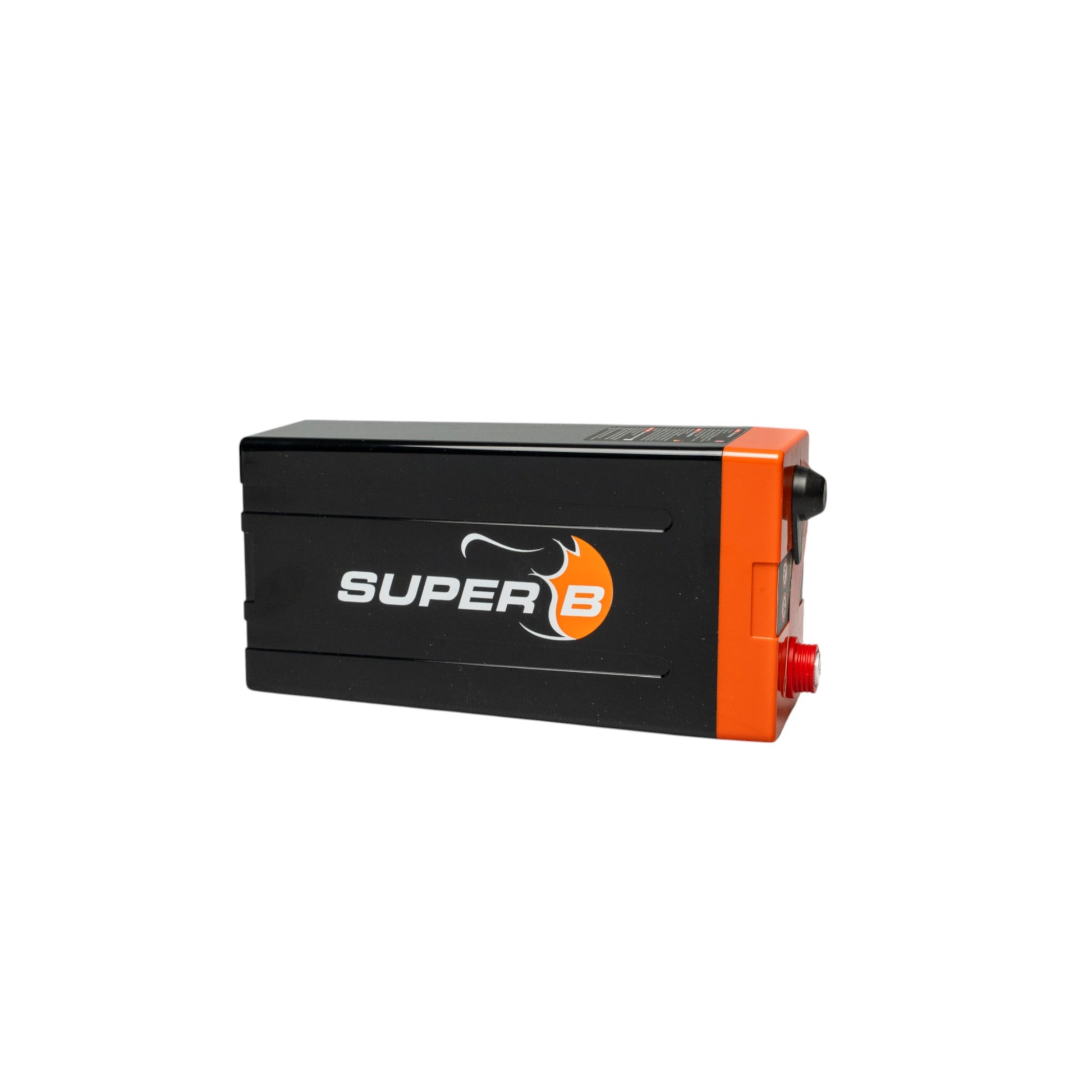

Lightweight, high-performance, safe and reliable lithium power battery, especially developed for motorsports. This battery equals a lead-acid battery of 70 to 100Ah, provided the alternator’s maximum current doesn’t exceed the battery’s maximum charge current of 66A. Designed in a standard rally casing. Suitable for 12V systems and for use in extreme environments.

For international shipping please visit our delivery page.

For information about returning an item please visit our returns page.

The shipping cost will be calculated at checkout.

View full details

Electrical specifications

Nominal capacity: 20Ah

Open circuit voltage: 13.2V

Self-discharge <3% per month

Cycle life: >1000 (at 10Cdischarge, 100% DoD)

EqPb (Equals Lead acid battery): 70 to 100Ah

Voltage: 12V

Mechanical specifications

Dimensions: (LxWxH)120 x 82 x 238mm / 4.72” x 3.23” x 9.37”

Weight: 3.2 kg / 7.0lbs

Case material: PC - ABS

Ingress protection: IP69

Cell type / ChemistryCylindrical - LiFePO4

Charge & Discharge specifications

Charge method: CCCV

Charge voltage: 14.3V - 14.6V

Max. charge current: 66A

End of discharge voltage: 8V

Discharge current continuous: 320A

Discharge pulse current: 892A (45C) (1 sec)

Temperature specifications

Charge temperature: 0°C to 55°C / 32°F to 131°F

Discharge temperature: -30°C to 55°C / -22°F to 131°F

Storage temperature: -40°C to 60°C / -40°F to 140°F

Compliance specifications

Certifications: CE, UN 38.3, UL 1642 (Cells)

Shipping classification: UN 3480

General specifications

EAN-13: 8718531360051

Battery designation: 4IFpR27/66-8
